KOOEN new style twin screw extruder machine/ rubber extruder

FOB Reference Price:Get Latest Price
$12,500.00 - $31,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
KOOEN
Model Number:
SJZ
Voltage:
according to customer standard
Application:
pvc pipe, profile
Weight:
2500- 10000 kgs
Certification:
ce, iso9001
Screw Design:
Double-screw
Plastic Processed:
plastic pvc pipe, upvc profile, etc
Dimension(L*W*H):
4235*1520*2450mm
keywords:
twin screw extruder machine/ rubber extruder
screw diameter:
51-92mm
quantity of screw:
2
screw rotation speed:
1-37 rpm
heating power:
10 -87kw
machine color:
blue or according to customer
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
15 -90kw
Automatic Grade:
full automatic
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden package (twin screw extruder machine/ rubber extruder)
Port
Shanghai port, China
Lead Time :
20 days

twin screw extruder machine/ rubber extruder









    SJZ-51/105 SJZ -55/110 SJZ -65/132 SJZ -80/156 SJZ -92/188 SJZ series conical twin/double screw extruder




SJZ series conical double screw extruder especially used for extrusion PVC powder, it has advantages as good mixing, large output, working steady , long service life time etc. equipped with series mold and auxiliary machine, it can produce various PVC pipes, profiles, sheets, plates, bars and it also can be used for pelletizing.

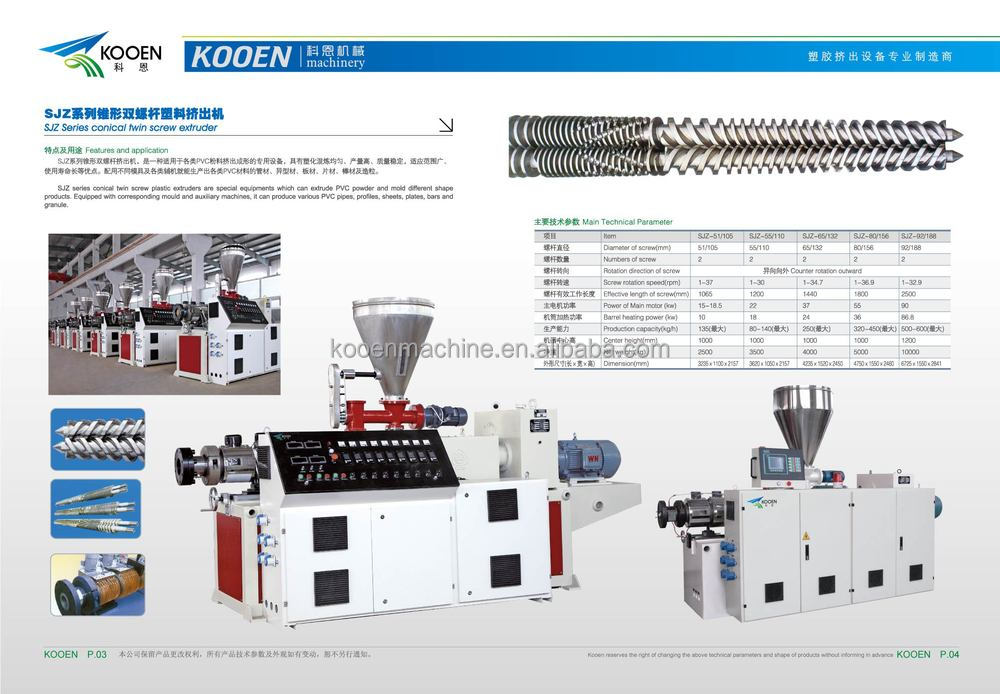

Main technical parameter of SJZ series conical twin screw extruder

Item

SJZ-51/105

SJZ-55/110

SJZ-65/132

SJZ-80/156

SJZ-92/188

Diameter of screw

(mm)

51/105

55/110

65/132

80/156

92/188

Number of screw

2

2

2

2

2

Rotation direction of screw

Counter rotation outward

Screw rotation speed(rpm)

1-37

1-30

1-34.7

1-36.9

1-32.9

Effective length of screw(mm)

1065

1200

1440

1800

2500

Power of main motor (kw)

15-18.5

22

37

55

90

Barrel heating power(kw)

10

18

24

36

86.8

Production capacity(kg/hr)

135(MAX)

80-140(MAX)

250(MAX)

320-450(MAX)

500-600(MAX)

Canter height(mm)

1000

1000

1000

1000

1000

Net weight (kg)

2500

3500

4000

5000

10000

Dimension (mm)

3235*1100*2157

3620*1050*2157

4235*1520*2450

4750*1550*2460

6725*1550*2841

If want more details of this conical twin screw extruder, please contact with us!

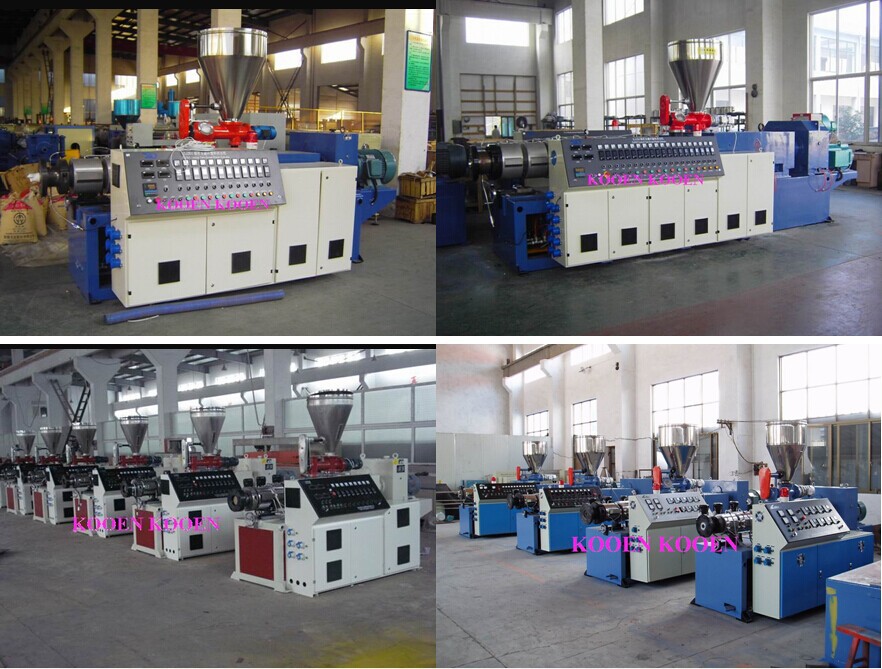

More photos of Conical twin screw extruder for reference:

.jpg

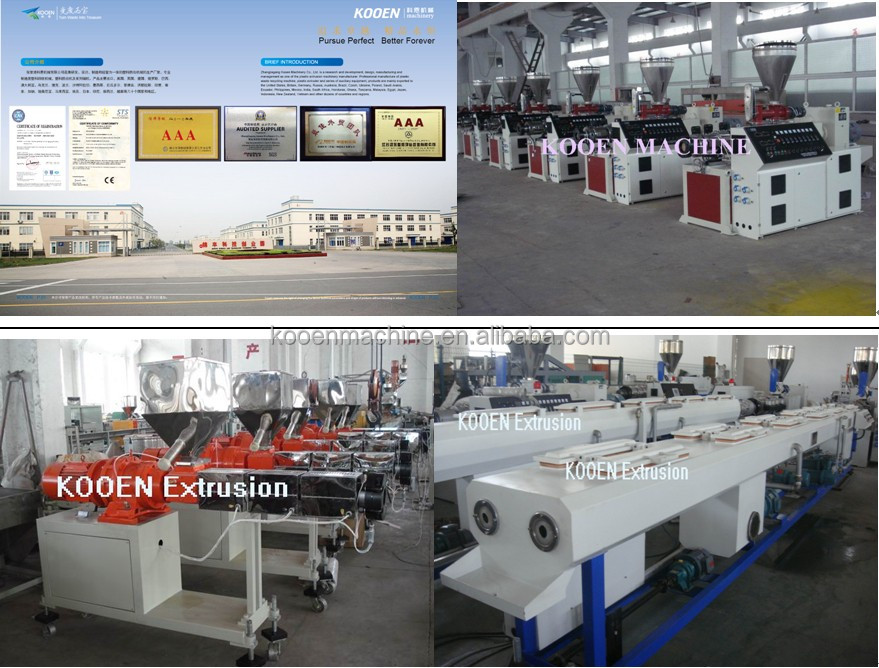

KOOEN Factory Layout:

a









cargo







For choosing proper machine and saving your time, please read these bellow guides carefully

1). What kinds of plastic machinery do you need ?  Or what material do you want to process?



2). What capacity do you want? (kg/h )



3) What is the electric device you need ? Siemens, Omron or domestic ?



4) When do you want the machine? (Times for delivery)



5) Other requirements about the machine you want.
