labyrinth drip irrigation belt machine for sale

FOB Reference Price:Get Latest Price
$15,000.00 - $28,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
KOOEN
Model Number:
KOOEN
Voltage:
according to customer
Application:
labyrinth drip irrigation belt machine
Certification:
CE
Screw Design:
Single-screw
Plastic Processed:
labyrinth drip irrigation belt machine
machine:
labyrinth drip irrigation belt machine
Hole Dia.:
16mm
Belt thickness:
0.16, 0.18mm
this line is:
drip irrigation belt production line
this machine is:
labyrinth drip irrigation belt machine
this equipment is:
drip irrigation tape making machine
Processing Type:
Extruding Machine
Product Type:
drip irrigation belt/tape
After-sales Service Provided:
Engineers available to service machinery overseas
Automatic Grade:
automatic
Supply Ability
Supply Ability:
5 Set/Sets per Month according to customer
Packaging & Delivery
Packaging Details
wooden package (labyrinth drip irrigation belt machine)
Port
Shanghai
Lead Time :
30 days

labyrinth drip irrigation belt machine/DGD series drip irrigation belt production line/ labyrinth drip irrigation belt machine

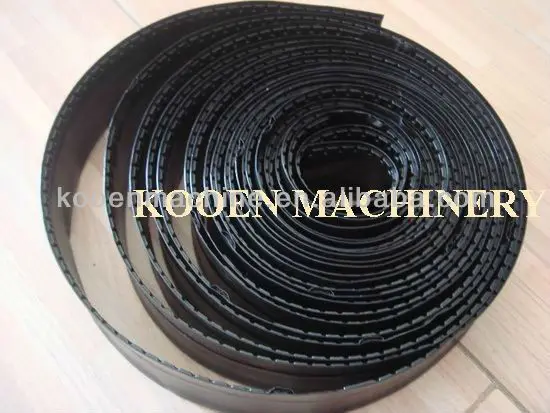

Drip irrigation line is used for production single wall labyrinth water conveying belt on the base of polyelefin. It is used in green houses and farms.



Technical features

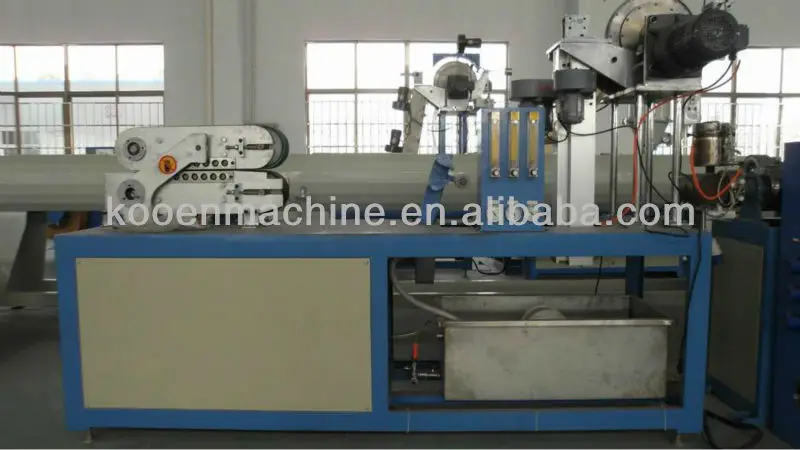

  1. The production line adopts high efficiency extruder, swift net changer and screw plastic blowing head;

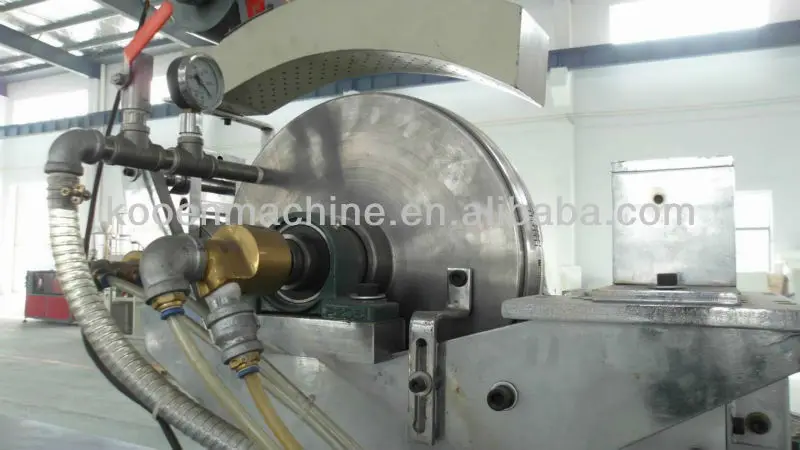

  2. Special designed vacuum composite forming die to ensure the accuracy and composite density;
  3. Unique measure device and scale huff to ensure the precise of products;
  4. Extruder and hual-off adopt AC frequency conversion technology;
  5. Temperature is adjusted by temperature control meter to realize PID control;

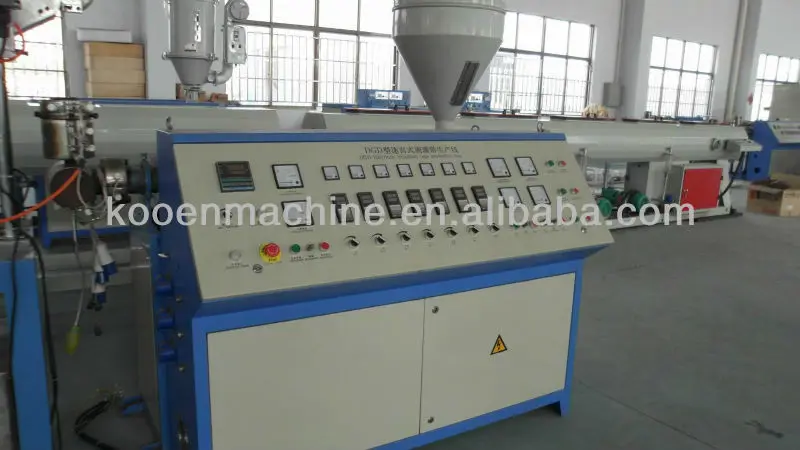

  6. The production is controlled by PLC, all the technical parameters can be set on the touch screen;

 Main technical parameter

Production speed (m/min)

24-60

Hole Dia. (mm)

16mm

Belt thickness (mm)

0.16,  0.18

Distance (mm)

100,200,  300,  400,600

Roller length (m)

500-2000

Total power consumption (kw)

32

If want more details of this labyrinth drip irrigation belt machine, drip irrigation belt/tape production machine, please contact with us!
