KOOEN export glass fiber ppr pipe extrusion machines line equipment plant

FOB Reference Price:Get Latest Price
$30,000.00 - $42,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
KOOEN
Model Number:
PPR
Voltage:
according to customer standard
Application:
Pipe
Weight:
3500-5000kg
Certification:
CE, ISO9001
Screw Design:
Single-screw
Plastic Processed:
PPR
Dimension(L*W*H):
26000*4500*1750mm
ppr pipe:
glass fiber ppr pipe extrusion machines line
machine color:
Blue (or according to customer)
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
70-150kw
Automatic Grade:
Full automatic
Supply Ability
Supply Ability:
3 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden package (glass fiber ppr pipe extrusion machines line)
Port
Shanghai
Lead Time :
40 days

PPR pipe making machine/ PPR pipe production line/PPR pipe extrusion line/ glass fiber ppr pipe extrusion machines line




Working flow

Mixer→ Automatic Charger→ Material dry → Single screw extruder →Marking line extruder(co-extrusion)→Mould→ Vacuum calibration tank → Spraying cooling tank →Ink Printer→  Haul-off machine →Cutter →Stacker





Main technical parameter of PPR pipe making machine/ PPR pipe production line/PPR pipe extrusion line

Model

PPR-32

PPR-63

PPR-110

Specifications of extruder

SJ65/30

SJ90/30

SJ120/28

Pipe Type(mm)

φ 16- φ 32

 φ 20- φ 63

  φ 20- φ 110

 Production line speed(m/min)

 ≥ 3~10

 ≥ 2~6

 ≥ 1.2~4

 Air pressure(≥ 0.6MPa)(m3/min)

 0.3

 0.3

 0.5

 Cooling water flow rate(m3/h)

 2

 4

 8

 Total power(kw)

 72

 115

 150

 Dimension(mm)

20000*4000*1700

 26000*4500*1750

 30000*5000*1750

 Weight(kg)

 3500

 4000

 4500

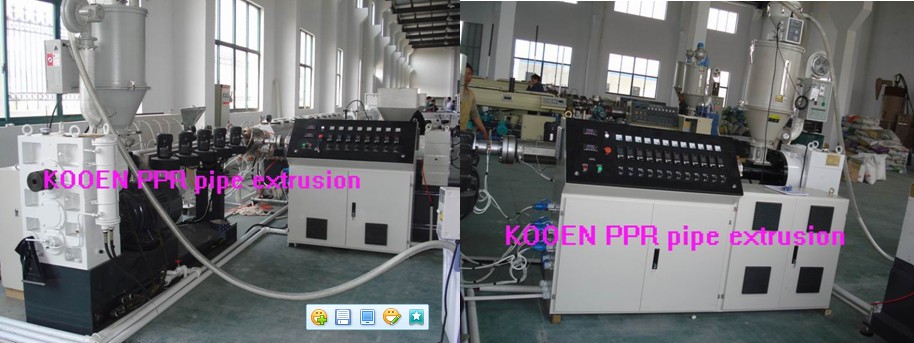

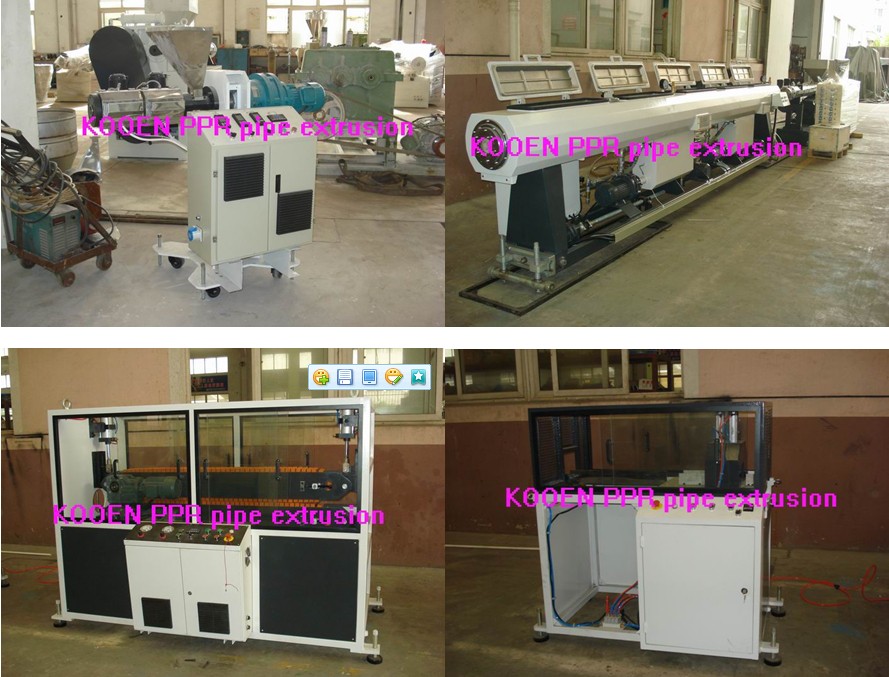

 More photos of our PPR pipe machine for reference:




Application:

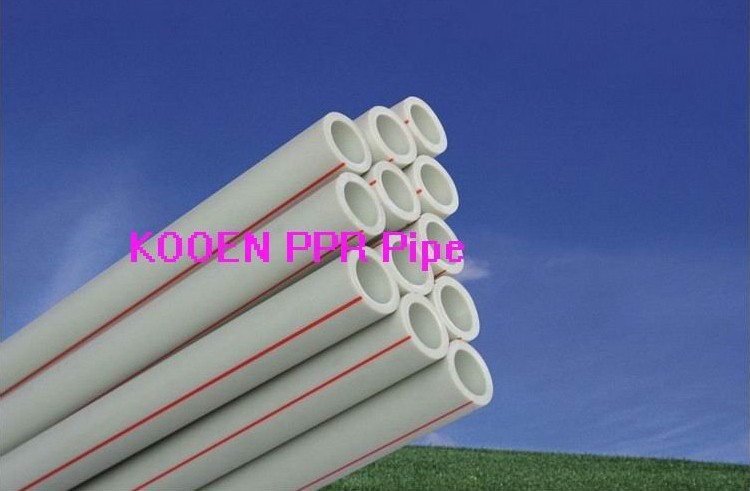

1. Building hot and cold water system, including central heating system;
2. Building heating system, including floor, wall and radiant heating system;
3. Can be directly used in purified water drinking water supply system.
4. Central air condition system'
5. Adopts co-extrusion die head and adds marking line for pipes.





For choosing proper machine and saving your time, please read these bellow guides carefully

1). What kinds of plastic machinery do you need ?  Or what material do you want to process?



2). What capacity do you want? (kg/h )



3). What is the max and min size of the finish products .For example, the diameter of pipe(inch or mm); thickness of pipe wall(mm); width and thickness of sheet (mm)? If profile product, you’d better offer the picture of sample or drawing of sample.



4) What is the electric device you need ? Siemens, Omron or domestic ?



5) When do you want the machine? (Times for delivery)



6) Other requirements about the machine you want.



KOOEN company Layout

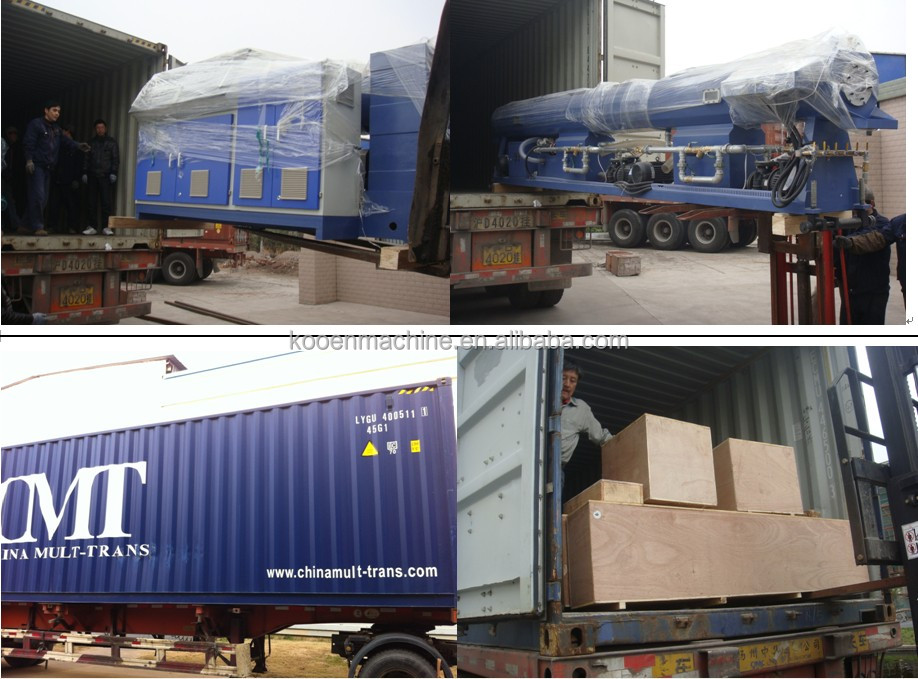

Cargo loading photos
